T5 LED tube G5 base in T6 body 110-180lm/w 2-8ft 2800-6500K led tube dmx
Product Description
Wiscoon High quality T5 LED Tube Light led tube dmx https:// Specifications:
Product detail show

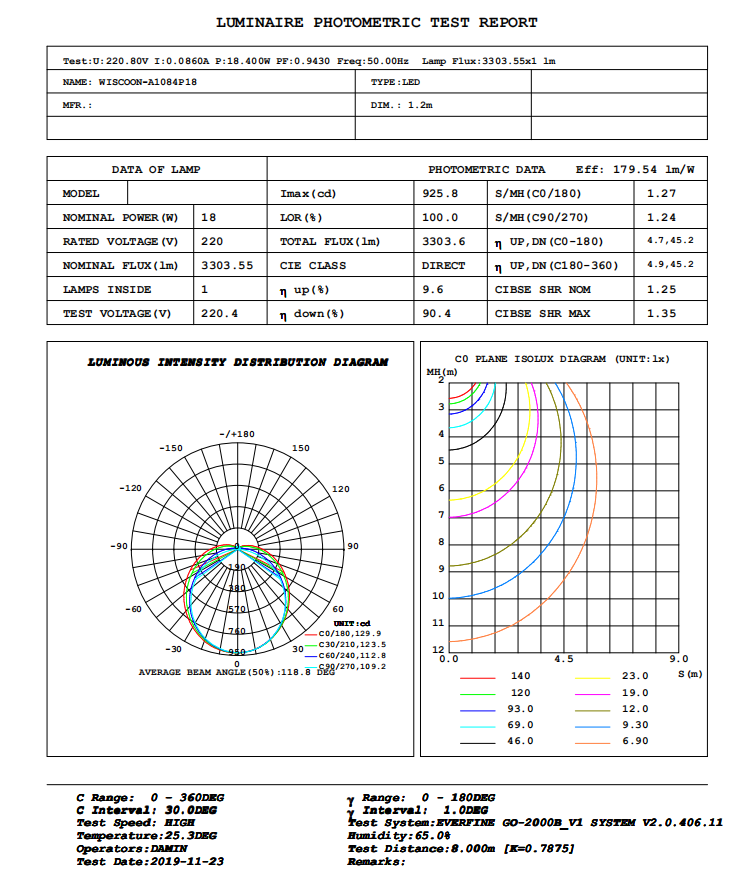

IES Test Report for LED tube:
WISCOON RAQ service: 1. What's the difference for fluorescent tube and LED tube? A: LED tube has much longer lifetime and more energy saving than fluorescent tube 2. What you should do if the LED tubes not working within the warranty period? A: We will make replacement if our LED tubes broken in normal use not by Man-made destruction 3. Is the luminous efficiency of your tube real output? or it's just the data of LED chips? A: All the luminous efficiency what we make is real output data, we will provide IES report or Spectrum Test Reports Contact us if you need more details on T5 LED Tube Led Tube Dmx. We are ready to answer your questions on packaging, logistics, certification or any other aspects about T5 LED tube light、T5 Tube. If these products fail to match your need, please contact us and we would like to provide relevant information.
| Item | Length 2Ft | Length 3Ft | Length 4Ft | Length 5Ft | Length 6Ft |
| Input Voltage | 85-265V AC | 85-265V AC | 85-265V AC | 85-265V AC | 85-265V AC |
| Current | 45mA±10mA (AC 230V) | 65mA±10mA (AC 230V) | 95mA±10mA (AC 230V) | 120mA±10mA (AC 230V) | 130mA±10mA (AC 230V) |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Wattage | 6-10V | 12-15V | 16-20V | 20-25V | 25-30V |
| Power Factor | AC 100V ≥0.99 AC 230V ≥0.9 | AC 100V ≥0.99 AC 230V ≥0.9 | AC 100V ≥0.99 AC 230V ≥0.9 | AC 100V ≥0.99 AC 230V ≥0.9 | AC 100V ≥0.99 AC 230V ≥0.9 |
| Efficiency | 91% | 91% | 91% | 91% | 91% |
| LED type | SMD2835 | SMD2835 | SMD2835 | SMD2835 | SMD2835 |
| CRI | >80/90(optional) | >80/90(optional) | >80/90(optional) | >80/90(optional) | >80/90(optional) |
| Luminous Efficiency | 110-180lm/w | 110-180lm/w | 110-180lm/w | 110-180lm/w | 110-180lm/w |
| Color temp | 2800-6500K | 2800-6500K | 2800-6500K | 2800-6500K | 2800-6500K |
| Base Cap | G5 | G5 | G5 | G5 | G5 |
| Cap type | Fixed and Rotatable | Fixed and Rotatable | Fixed and Rotatable | Fixed and Rotatable | Fixed and Rotatable |
| Installation | Double ends or Single end | Double ends or Single end | Double ends or Single end | Double ends or Single end | Double ends or Single end |
| Lifetime | >50,000h | >50,000h | >50,000h | >50,000h | >50,000h |
| Warranty | 5 years | 5 years | 5 years | 5 years | 5 years |
IES Test Report for LED tube: WISCOON RAQ service: 1. What's the difference for fluorescent tube and LED tube? A: LED tube has much longer lifetime and more energy saving than fluorescent tube 2. What you should do if the LED tubes not working within the warranty period? A: We will make replacement if our LED tubes broken in normal use not by Man-made destruction 3. Is the luminous efficiency of your tube real output? or it's just the data of LED chips? A: All the luminous efficiency what we make is real output data, we will provide IES report or Spectrum Test Reports Contact us if you need more details on T5 LED Tube Led Tube Dmx. We are ready to answer your questions on packaging, logistics, certification or any other aspects about T5 LED tube light、T5 Tube. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : LED tube light > LED tube light
